• • The long-distance transmission distance of the single machine enables long-distance single-machine transmission without intermediate transfer, which greatly improves the conveying capacity and efficiency.

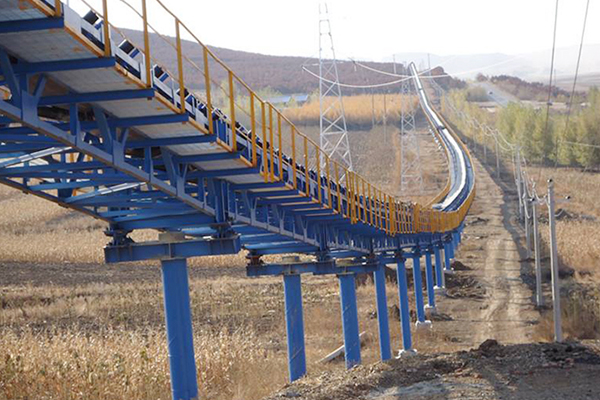

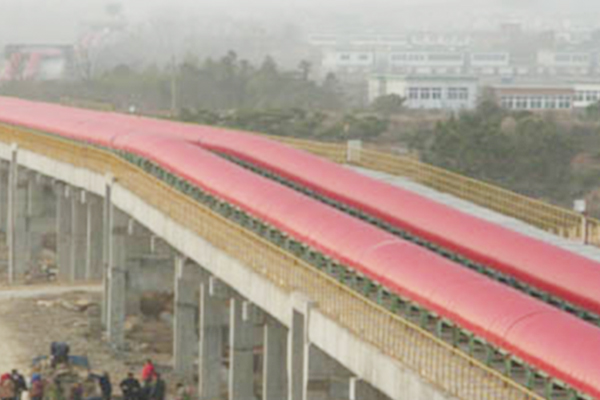

    • The conveying line can realize horizontal turning with small radius. The maximum conveying turning radius is 80-120 larger than that of the ordinary belt conveyor. Its operation is stable, ensuring that the conveyor belt does not run off during long-distance curve conveying, no material is thrown, and the cross-wind resistance is not allowed. Strong, protect the environment.
    • Multi-point horizontal turning, which can replace multiple machines in one machine. It has solved the limitations of traditional belt conveyors on the transportation area and space. One conveyor can replace multiple units, greatly reducing construction investment, making the power supply and control system more concentrated, and effectively achieving skill reduction.



    According to the requirements of the transportation process, the designer can select the design according to different terrain and working conditions. At present, the maximum length of a single machine is 20KM, and the maximum conveying capacity is 20000t/h.





    Technical Data of Plane Turning Belt Conveyor

    Belt Width

    (mm)

    Repose

    Angle

    Belt speed(m/s)

    2.0

    2.5

    3.15

    4.0

    5.0

    6.3

    Carrying Capacity(t/h)

    800

    10°-20°

    380-550

    480-680

    600-850

    ---

    ---

    ---

    1000

    630-880

    790-1110

    1000-1400

    1200-1700

    ---

    ---

    1200

    900-1300

    1150-1600

    1450-2050

    1850-2600

    2300-3200

    ---

    1400

    1250-1800

    1580-2250

    2000-2800

    2550-3600

    2190-4500

    ---

    1600

    1700-2350

    2100-2950

    2650-3850

    3400-4750

    4250-5950

    ---

    1800

    2150-3050

    2700-3800

    3440-4840

    4350-6100

    5450-7650

    6800-9600

    2000

    ---



    4380-6050

    5480-7680

    6850-9600

    8700-12000

    2200

    ---



    5300-7300

    6700-9300

    8400-11700

    10600-14600

    2400

    ---



    6300-8600

    7900-11000

    9900-13800

    12600-17200



    Note:The carrying capacity in the table is calculated on the basis of 1t/m³ volumetric weight, horizontal conveyance, and idler troughing angle at 30°.
