• How to work:

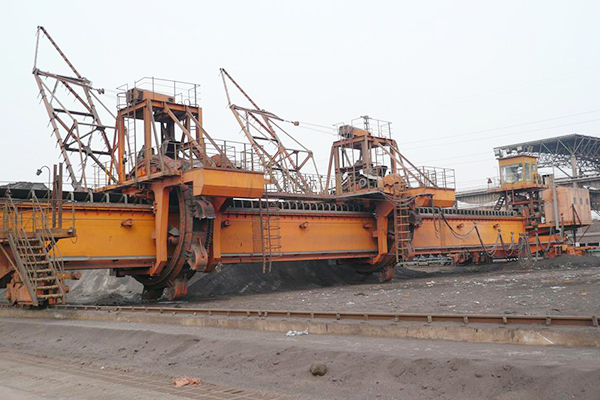

    The pile of the bridge bucket reclaimer reclaiming work is piled up in a herringbone shape by the stacker. The two bucket wheel devices of the reclaimer are mounted on the main beam and run back and forth along the length of the main beam on the cross section of the pile. In the cross section of the pile, the take-up hoppers of the two bucket wheel devices are respectively mixed and taken at the different take-off points for the first time, and the two bucket wheel devices rotating around the main beam take the materials taken at the lower position. At the high position, the material is conveyed to the receiving belt conveyor arranged in the main beam for a second mixing. The receiving belt conveyor receives the material removed by the first bucket wheel device and then transports it to the second bucket wheel device. The materials removed by the two bucket wheel devices are mixed to complete the third mixing work, and the fourth mixing work is completed when the material being excavated is discharged to the ground belt conveyor of the system. The process of continuously taking and discharging the material not only achieves the process requirement of mixing and reclaiming.





    Bridge Bucket Reclaimer Technical Specification Sheet:

    Model

    HQL250/26

    HQL750/30

    HQL600/32

    HQL800/35

    HQLS2000/37

    HQLS1500/37

    HQLS1800/48

    HQLS2500/50

    Name

    Bridge bucket wheel stacker and reclaimer

    Production capacity(t/h)

    250

    750

    600

    800

    2000

    1500

    1800

    2500

    Applicable material

    Medium, limestone, iron, shale, bauxite, clay and other bulk materials

    Walking gauge(m)

    26

    30

    32

    35

    37

    37

    48

    50

    Shunt speed(m/min)

    16.5

    20

    16.5

    20

    Maximum wheel pressure(KN)

    160

    180

    280

    270

    330

    Way to control

    Automatic control, manual control

    Model Description: HQL1/2. H-mixing, Q-bridge, L-bucket reclaimer, S-double bucket wheel, 1-receiving capacity (t/h), 2-track.
