• • The homogenization effect is good, and it is the best equipment for homogenization in all the reclaiming equipment.
    • The structure is simple and the performance is reliable. Such equipment has been widely used in China, and the technology is mature, supplemented by perfect technology to further ensure equipment performance.
    • Before the equipment leaves the factory, the overall performance is carried out to ensure the processing quality. Minimize the number of parts when shipping, modular delivery, and easy installation on site.
    • The equipment is highly automated and unattended.
    • Design and practice combine to listen to reasonable suggestions from users, maintain the advanced nature of the equipment, and facilitate user use from the perspective of use.



    How to work:

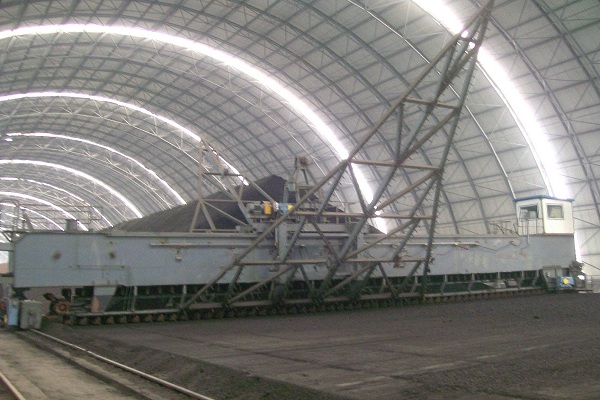

    Bridge scraper reclaimer, the material on both sides reciprocates along the reclaimer bridge, and the material on the entire take-up surface is dropped to the bottom of the pile through the teeth on the material, along with the scraper system along the bridge The circular motion of the direction, the material falling to the bottom of the pile evenly enters the continuous running scraper, is taken away by the scraper, and is discharged onto the belt conveyor to complete the mixing and reclaiming work.



    Bridge scraper (scraper) reclaimer technical specification sheet:

    Model

    QG60/33

    QG110/22

    QG300/26

    QG400/28

    QG600/30

    QG800/32

    QG1000/36

    QG1200/39

    QG1800/46

    QG2000/50

    Name

    Bridge scraper (scraper) reclaimer

    Production capacity(t/h)

    30-60

    50-110

    30-300

    40-400

    60-600

    80-800

    100-1000

    120-1200

    180-1800

    200-2000

    Applicable material

    Medium, limestone, iron, shale, bauxite, clay and other bulk materials

    Walking gauge(m)

    33

    22

    26

    28

    30

    32

    36

    39

    46

    50

    Shunt speed(m/min)

    13.1

    9.86

    13.1

    13.1

    Maximum wheel pressure(KN)

    300

    350

    350

    Way to control

    Automatic control, manual control

    Model description: QG1/2. Q-Reclaimer, G-scraper type, 1-receiving capacity (t/h), 2-retractor gauge (m).
