• How to work:

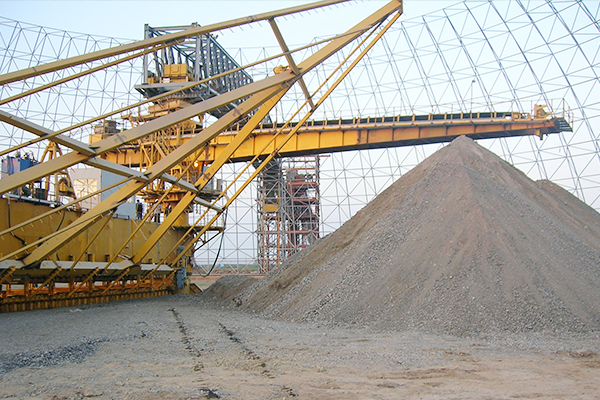

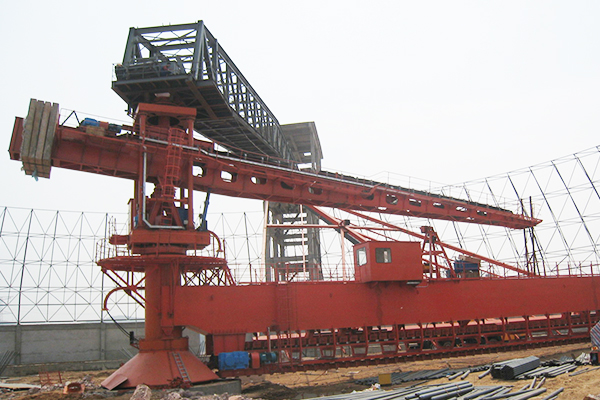

    The equipment adopts a stacking and reclaiming process of herringbone stacking and full-section reclaiming. Under the PLC program, the stacker reciprocates and rotates. At the same time, during the reciprocating revolution, the cycle variable speed shifting from rising to falling is completed, and the continuous herringbone stacking process is completed. The reclaimer is operated by the end beam on the circular orbit around the center column, and the material is reciprocated along the bridge to realize the full-section reclaiming. Finally, the scraper conveying system scrapes the material to the bottom of the middle column through the pit. The tape conveyor is shipped out.





    Circular material yard stacker and reclaimer main model specification sheet:

    Model

    Name

    Stacker

    Reclaimer

    Storage capacity(m3

    Way to control

    Stacking capacity(t/h)

    Bandwidth (mm)

    Reclaiming capacity(t/h)

    Scraper width(mm)

    Chain speed(m/s)

    YG**/60

    Round stockyard scraper stacker and reclaimer

    500-800

    500-800

    40-200

    1800

    0.4

    15000

    Automatic control manual control

    YG**/80

    500-1000

    650-1200

    40-400

    1800

    0.5

    34000

    YG**/90

    500-1200

    800-1200

    250-500

    1800

    0.6

    52000

    YG**/78

    500-800

    650-1200

    1000

    2000

    0.7

    30000

    YG**/100

    1000-2000

    800-1400

    800-1200

    2000

    0.7

    75000

    YG**/110

    1000-2500

    800-1400

    1000-1200

    2000

    0.7

    86000

    YG**/120

    1500-3000

    800-1600

    1200-1500

    2500

    0.7

    95000

    Model description: YG1/2. Y-round stockyard, G-scraper type, 1: reclaiming capacity (t/h), 2: stockyard diameter (orbital diameter) (m).
