• How to work:

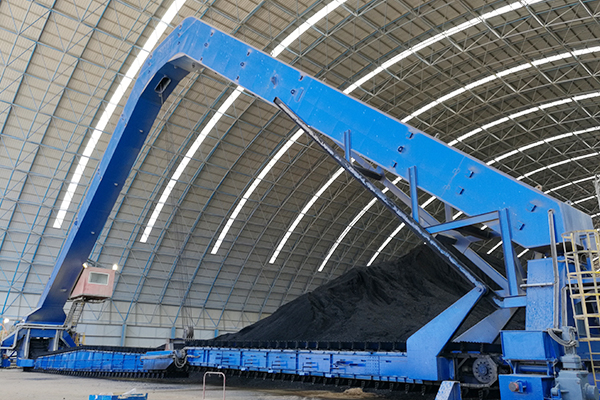

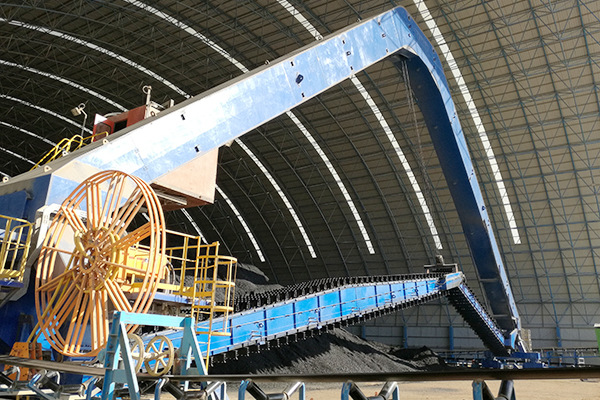

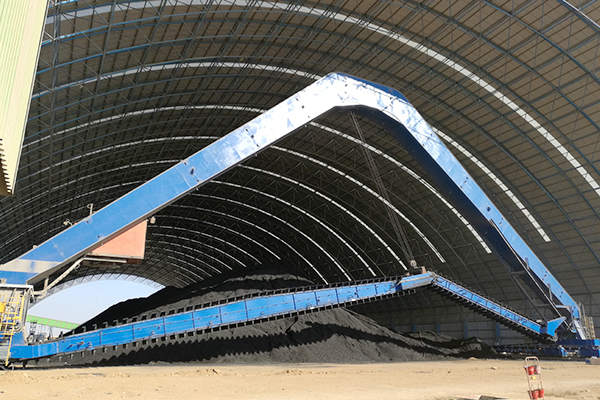

    The door type scraper reclaimer reciprocates on the track through the reclaimer, and the scraper reclaiming system discharges the material into the guide trough, and then is transported out by the guide trough into the discharge belt conveyor. After each layer of material is taken, the picking arm lowers the corresponding height according to the preset command, and takes out the material layer by layer at the corresponding running speed until it is taken.







    Door scraper reclaimer technical specification sheet:

    Model

    QGM360/25

    QGM1200/28.5

    QGM400/35

    QGM600/46

    QGM800/46

    QGM1000/50

    QGM750/54

    Name

    Door scraper reclaimer

    Production capacity(t/h)

    40-360

    120-1200

    400-400

    60-600

    80-800

    100-1000

    80-750

    Applicable material

    Medium, limestone, iron, shale, bauxite, clay and other bulk materials

    Walking gauge(m)

    25

    28.5

    32

    38

    46

    50

    54

    Shunt speed(m/min)

    13.1

    9.86

    13.1

    Maximum wheel pressure(KN)

    250

    300

    350
