Features:
鈥 Overall performance.
鈥 Reliability, strict implementation of design requirements, perfect process means. Overall performance.
鈥 Adopt advanced design methods such as computer-aided design, 3D design and optimized design of steel structures.
鈥 Advanced. The equipment is unmanned and can be fully automated for stacking and reclaiming operations. It is a highly automated product.
How to work:

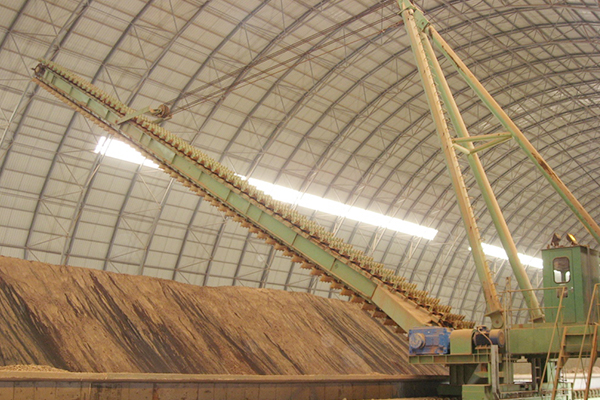

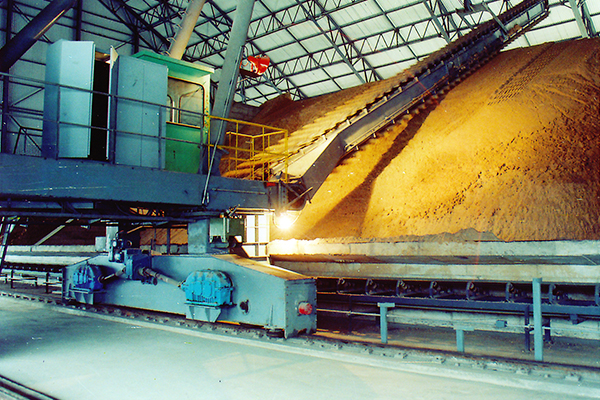

The side scraper reclaimer is a reclaiming device for the bulk pile bulk material stack. When the equipment starts, the scraper is close to the material surface, and the reclaimer walks and starts. When the reclaimer reaches the limit position, the walking stops, the scraper cantilever drops a certain angle, and the reverse walking begins. After walking to the extreme end position of the other end, return again, and thus reciprocating the material.
Side scraper (scraper) reclaimer technical specification sheet:
|
Model |
QGC350/ 22.5 |
QGC110/ 26 |
QGC500/ 27.4 |
QGC600/ 19 |
QGC200/ 21 |
QGC400/ 23.5 |
QGC500/ 26 |
QGC370/ 29.5 |
QGC250/ 35.9 |
QGC600/ 36 |
|
Name |
Side scraper (scraper) reclaimer |
|||||||||
|
Production capacity锛坱/h锛 |
200-350 |
50-110 |
50-500 |
60-600 |
20-200 |
40-400 |
50-500 |
40-370 |
25-250 |
60-600 |
|
Applicable material |
Medium, limestone, iron, shale, bauxite, clay and other bulk materials |
|||||||||
|
Walking gauge锛坢锛 |
4 |
4 |
4 |
4-5 |
4 |
4 |
4 |
4-5 |
5 |
5 |
|
Shunt speed锛坢/min锛 |
9-11 |
|||||||||
|
Maximum wheel pressure锛圞N锛 |
300 |
350 |
||||||||
|
Way to control |
Automatic control, manual control |
|||||||||
Model Description: QGC1/2. Q-Reclaimer, G-scraper type, C-side type, 1-receiving capacity (t/h), 2-feeder span (m).
Customized solutions of bulk material handling equipment are available to customers worldwide.
