• How to work:

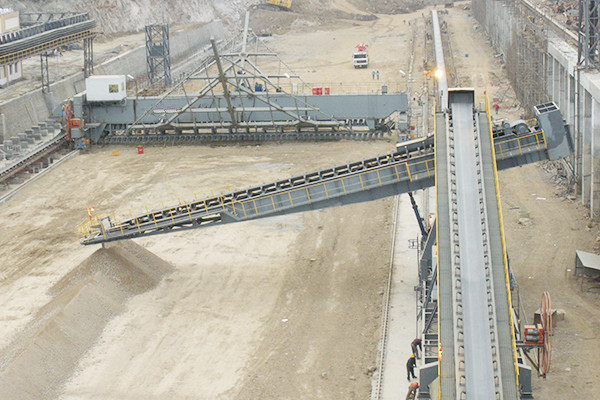

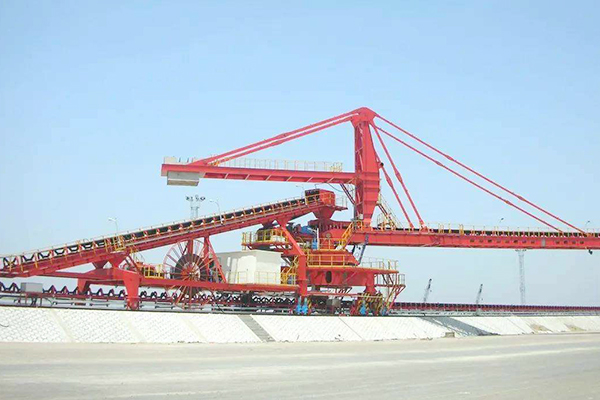

    During work, the material from the grounding belt conveyor of the stockyard is transferred from the tail car of the machine to the belt conveyor of the main arm frame, and then transferred to the material yard through the hopper of the centering mechanism. While the boom belt conveyor is unloading to the stockyard, the driving trolley of the main running gear is started according to the logic program and continuously travels to realize the herringbone stacking mode. The cart travels back and forth at both positive and negative speeds to ensure uniform thickness of the material layer.

    When the pile reaches a certain height, the material detecting device at the front end of the forearm sends a position signal, and the pitching mechanism raises the forearm by a height. At the same time, the corresponding change angle of the funnel of the centering mechanism maintains the center line of the blanking, and the running mechanism Change the starting point of a running, the stacker continues to travel to and from the fabric until the next cycle.







    Main technical specifications of side cantilever (slewing) stacker:

    Model

    DX110-600

    DX600-1300

    DB(100-600)17

    DB800/16.5

    (H)DB1000/15

    (H)DB1500/30

    DB1800/33.5

    (H)DB2000/22

    (H)DB2400/30

    (H)DB3000/35

    (H)DB3500/37

    (H)DB4000/40

    Name

    Top unloading trolley stacker

    Side cantilever (slewing) stacker

    Production capacity(t/h)

    110-

    600

    600-

    1300

    100-

    600

    800

    1000

    1500

    1800

    2000

    2400

    3000

    3500

    4000

    Applicable material

    Medium, limestone, iron, shale, bauxite, clay and other bulk materials

    Walking gauge(m)

    2.65

    4

    4.5

    5

    4

    5

    6

    6

    Belt conveyor width(mm)

    500、650、800、1000、1200、1400、1600、1800、2000、2200、2400

    Belt conveyor speed(m/s)

    0.8-3.15

    Stacker arm length(m)

    -

    -

    17

    16.5

    15

    30

    33.5

    22

    24

    23

    24

    35

    Pitch angle(°)

    -

    -

    +17

    -17

    +11

    -12

    +15

    -10

    +14.5

    -14.5

    +16

    -13

    +16

    -10

    +18

    -11

    +18

    -12

    +16

    -13

    +16

    -11

    Variable amplitude drive

    -

    -

    Hydraulic

    Way to control

    Automatic control, manual control

    Model description: (H)DB(X)1/2. H-swivel type, D-stacker, B-cantilever type, X-car type, 1-stacking capacity (t/h), 2-heap
