• • Saves 40%-50% of floor space compared to equivalent storage yards.
    • Manufacturing costs can be reduced by 20%-40% compared to equivalent storage and the same power equipment.
    • Round stacker and reclaimer are complemented by plant buildings for indoor operation. It has the functions of waterproof, rain, snow and sand control to ensure the stability of raw material composition and humidity. It will promote the output power of the subsequent process equipment to be sufficient and stable.
    • Retaining walls are built around the periphery of the circular yard to increase storage. When the wall is equipped with a hemispherical grid roof, the dust generated during the operation can be enclosed in the set space to meet environmental protection requirements.



    How to work:

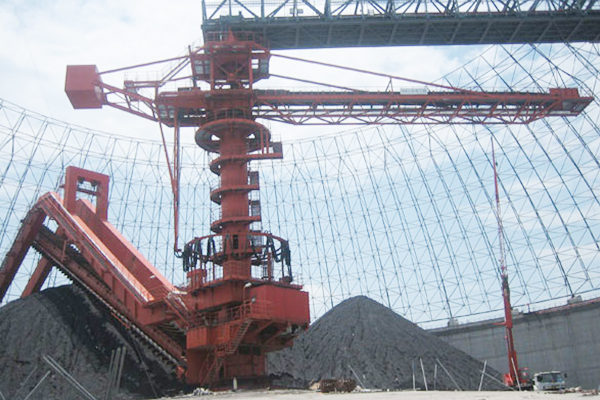

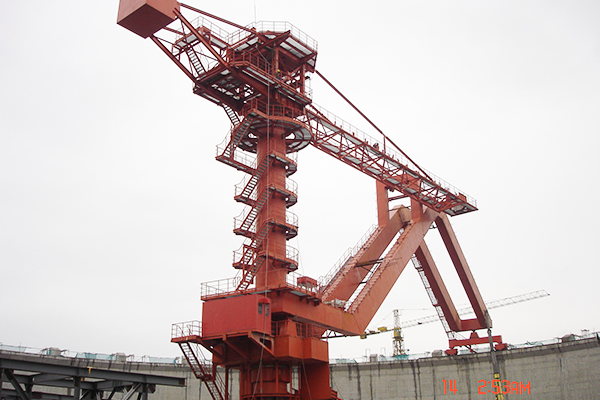

    The circular yard mixing and reclaiming machine is mainly composed of a rotatable cantilever stacker, a middle column, a side scraper reclaimer (door scraper reclaimer), an electric control system and the like. The middle column is installed in the center of the circular material yard. The upper part of the middle column is equipped with a swingable cantilever stacker. The cantilever stacker can be rotated 360° around the middle column, and the conical shell method is used to realize the cone shell method. The reclaimer is a side scraper reclaimer (door scraper reclaimer) that rotates around the center column. The material of the pile is scraped off to the center column through the reciprocating scraper on the boom of the reclaimer. The following discharge funnel transports the material through the funnel to the underground belt conveyor and out of the yard. The equipment can be continuously stacked, taken, and fully automated.





    Circular material yard top stack side picking and reclaiming machine technical parameter table:

    Model

    Stacker

    Reclaimer

    Storage capacity(m3

    Stacking capacity(t/h)

    Bandwidth(mm)

    Reclaiming capacity(t/h)

    Stacking capacity(mm)

    Chain speed(m/s)

    YGC□/60

    500-800

    650-1000

    40-400

    1800

    0.5

    30000

    YGMC□/60

    YGC□/80

    500-800

    650-1200

    60-600

    1800

    0.5

    56000

    YGMC□/80

    YGC□/90

    500-1000

    800-1200

    80-800

    1800

    0.6

    75000

    YGMC□/90

    YGC□/100

    1000-2000

    800-1400

    200-1800

    2000

    0.6

    100000

    YGMC□/100

    YGC□/110

    1600-2400

    800-1400

    240-2400

    2200

    0.7

    140000

    YGMC□/110

    YGC□/120

    2000-3500

    800-1600

    400-3500

    2500

    0.7

    200000

    YGMC□/120

    Model description: YG(M)C1/2. Y-round stockyard, G: scraper type, M: gantry type, C: side type, 1: reclaiming capacity (t/h), 2: stockyard diameter (track diameter) (m).
